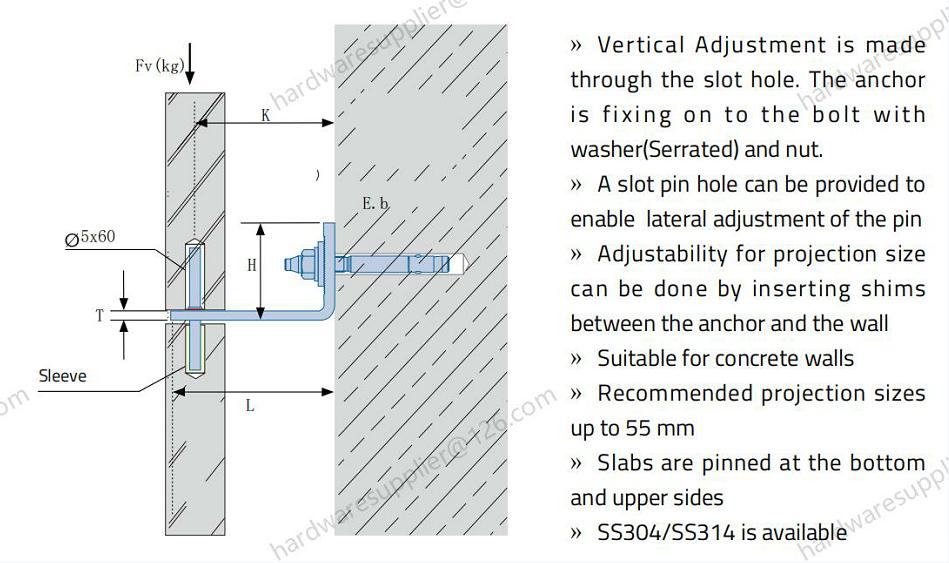

» Vertical Adjustment is made through the slot hole. The anchor is fixing onto the bolt with washer(Serrated) and nut.

» A slot pin hole can be provided to enable lateral adjustment of the pin

» Adjustability for projection size can be done by inserting shims between the anchor and the wall

» Suitable for concrete walls

» Recommended projection sizes up to 55 mm

» Slabs are pinned at the bottom and upper sides

» SS304/SS316 is available
