【Product Name】：
SLA Angle
【Product Introduction】：

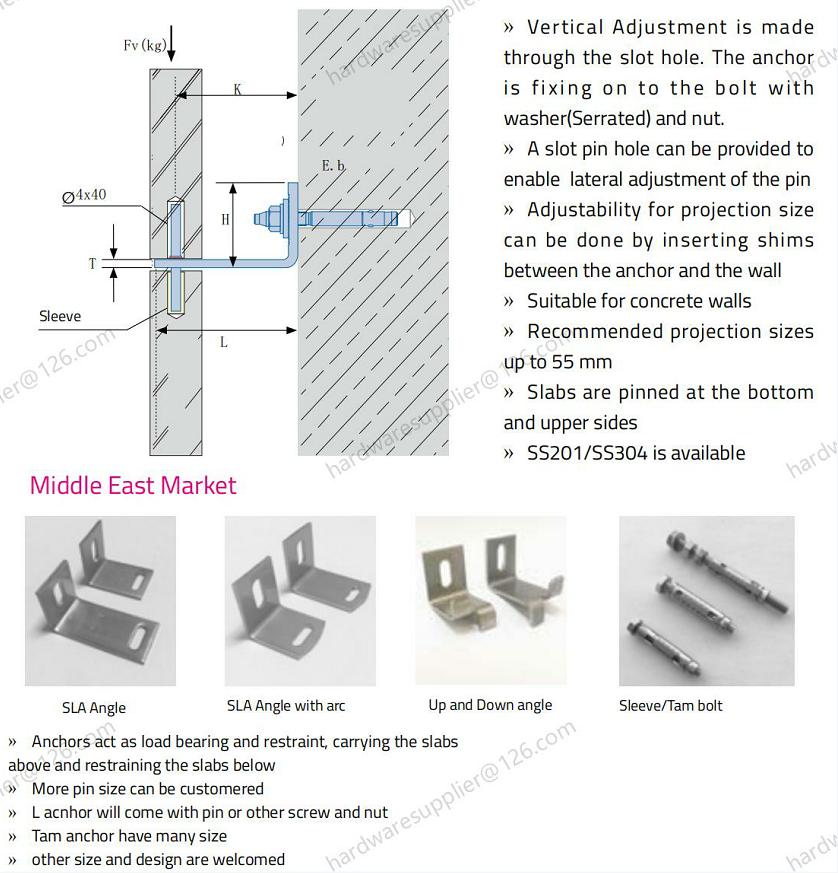

» Vertical Adjustment is made through the slot hole. The anchor is fixing onto the bolt with washer(Serrated) and nut.
» A slot pin hole can be provided to enable lateral adjustment of the pin
» Adjustability for projection size can be done by inserting shims between the anchor and the wall
» Suitable for concrete walls
» Recommended projection sizes up to 55 mm
» Slabs are pinned at the bottom and upper sides
» SS201/SS304 is available
