【Product Name】： LHS Anchor

【Product Introduction】：

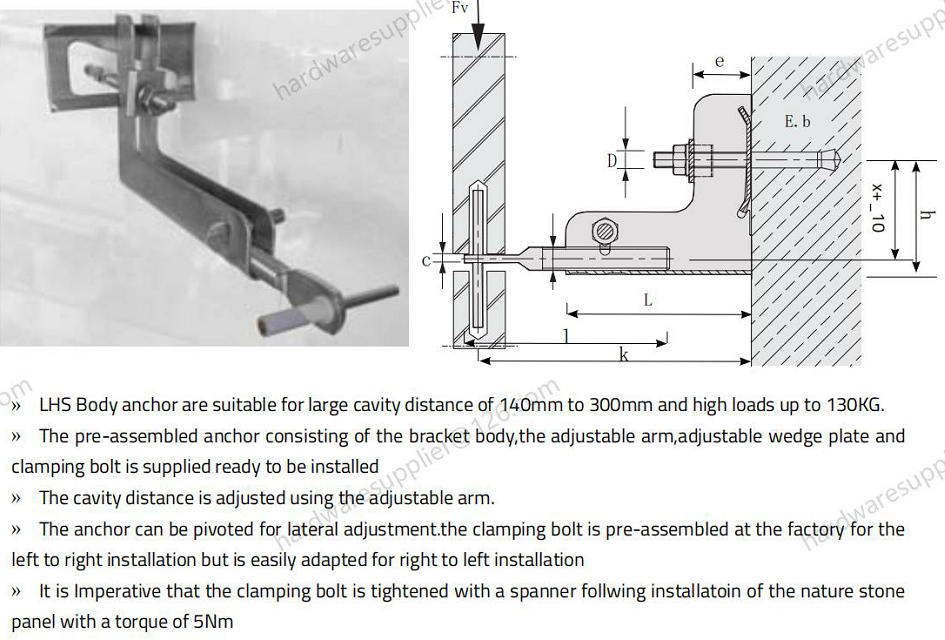

LHS Anchor

» LHS Body anchor are suitable for large cavity distance of 140mm to 300mm and high loads up to 130KG.

» The pre-assembled anchor consisting of the bracket body,the adjustable arm,adjustable wedge plate and clamping bolt is supplied ready to be installed

» The cavity distance is adjusted using the adjustable arm.

» The anchor can be pivoted for lateral adjustment.the clamping bolt is pre-assembled at the factory for the left to right installation but is easily adapted for right to left installation

» It is Imperative that the clamping bolt is tightened with a spanner following installation of the nature stone panel with a torque of 5Nm
