【Product Name】： DHS Anchor

【Product Introduction】：

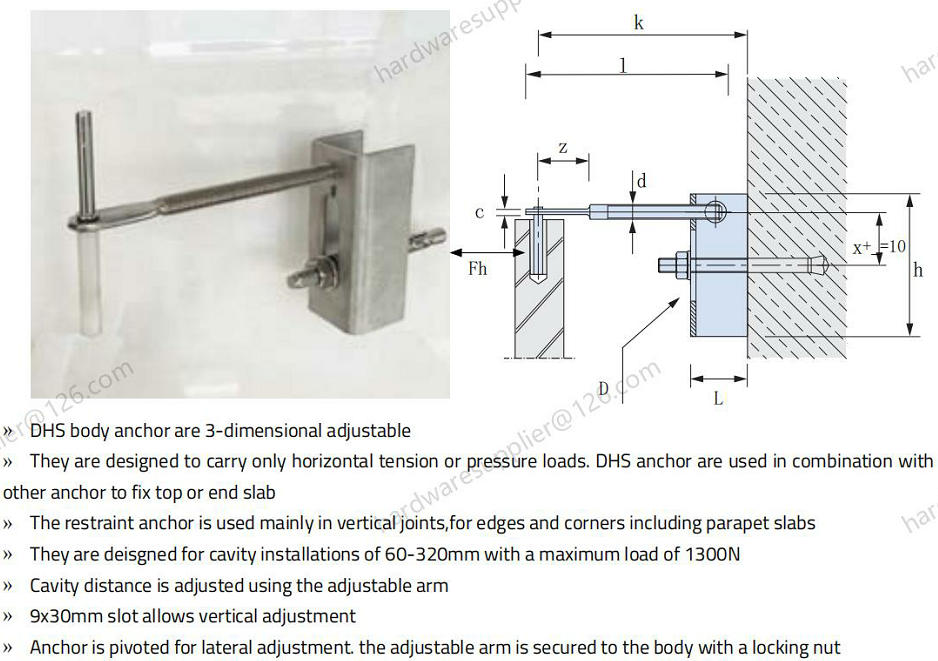

DHS Anchor

» DHS body anchor are 3-dimensional adjustable

» They are designed to carry only horizontal tension or pressure loads. DHS anchor are used in combination with other anchor to fix top or end slab

» The restraint anchor is used mainly in vertical joints,for edges and corners including parapet slabs

» They are designed for cavity installations of 60-320mm with a maximum load of 1300N

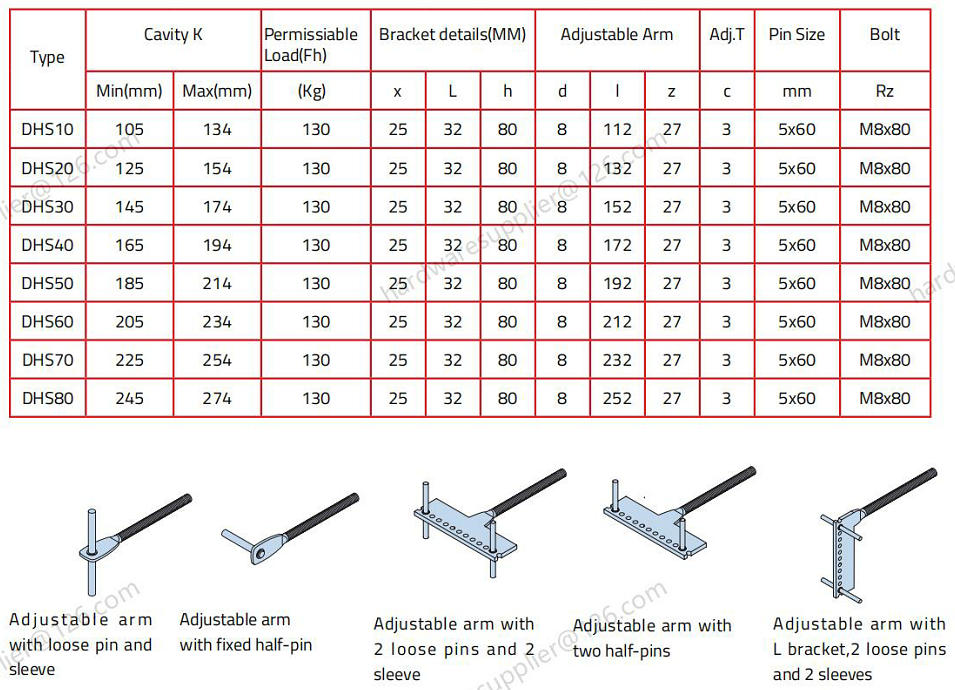

» Cavity distance is adjusted using the adjustable arm

» 9x30mm slot allows vertical adjustment

» Anchor is pivoted for lateral adjustment. the adjustable arm is secured to the body with a locking nut
